Printing Product Labels in Cin7 Core POS

Printing Product Labels in Cin7 Core POS

Cin7 Core POS allows printing of product labels directly from the Products page, as long as these products have barcodes defined for them in Cin7 Core.

The following barcodes are currently supported:

  • Code 93

  • Code 128

  • EAN-8

  • EAN-13

  • Industrial 2 of 5

  • UPC-A

  • UPC-E



Note: Product label templates can be customised to your requirements. You  can perform this customisation internally, especially if you have people well-versed in Microsoft Word. For more information, see Document Templates and Mail Merge. See instructions for POS labels here. Cin7 Core have a dedicated template team so do not hesitate to contact Cin7 Core Support if you are having trouble.

Prerequisites



To print a product label in Cin7 Core POS:

  1. On the Cin7 Core POS menu, click Inventory, then Products.

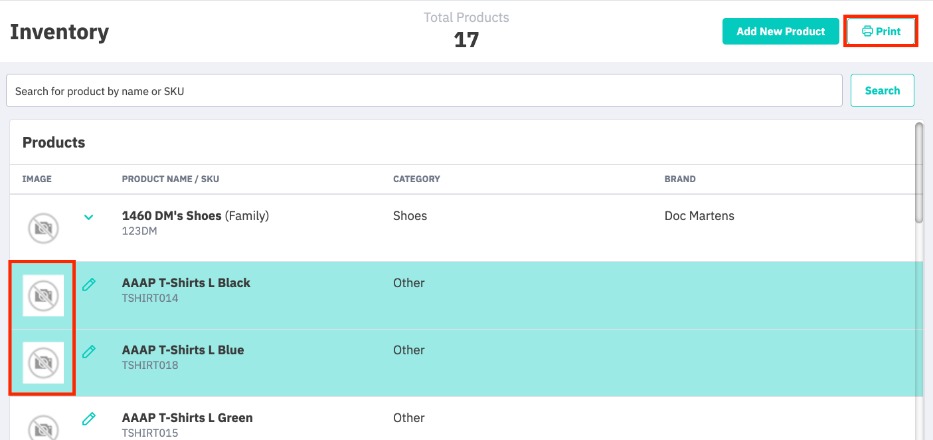

  2. Search for the product either by name or SKU. Alternatively, look for the product or products on the list. Click the image of one or more products to select them.

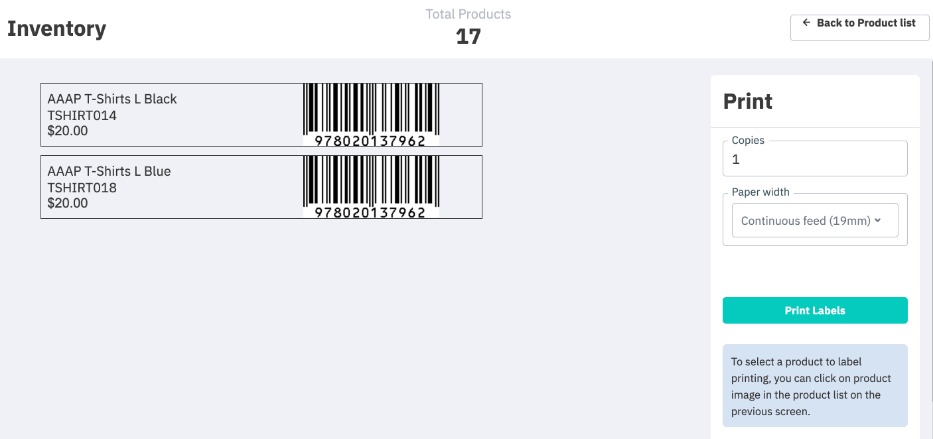

  3. Click the Print button on the top right to display the product label.


  4. Enter the number of copies to be printed, then select the appropriate paper width from the list. If there are any errors due to barcode formatting, an error will be displayed here.


  5. Click Print labels.

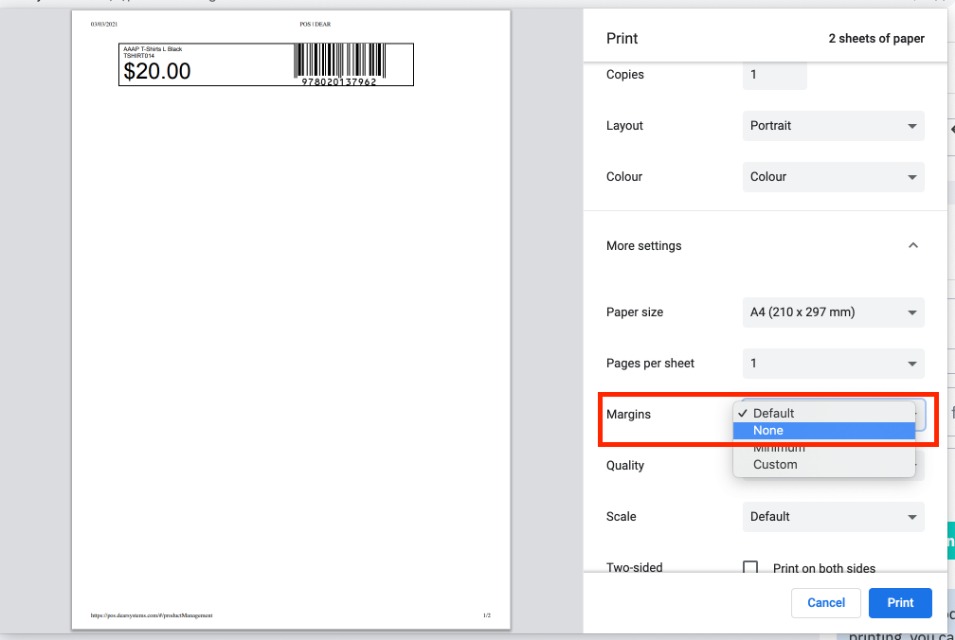

  6. On the popup window, name the file and select the folder on your device where the printed label will be saved.   Make sure to set Margins to None, then print the label.
